Overview
The Feasa LED Life Tester enables accelerated life testing and continuous monitoring of LEDs through extreme temperatures from −65°C to +125°C. Where conventional LED test instruments cannot operate inside environmental chambers, the Feasa LED Life Tester delivers reliable LED data throughout the entire test cycle.
Understanding how LEDs perform over thousands of hours is important for predicting long-term reliability. The LED Life Tester continuously records color and intensity as devices are exposed to extreme temperatures, providing valuable insight into performance and degradation over time.

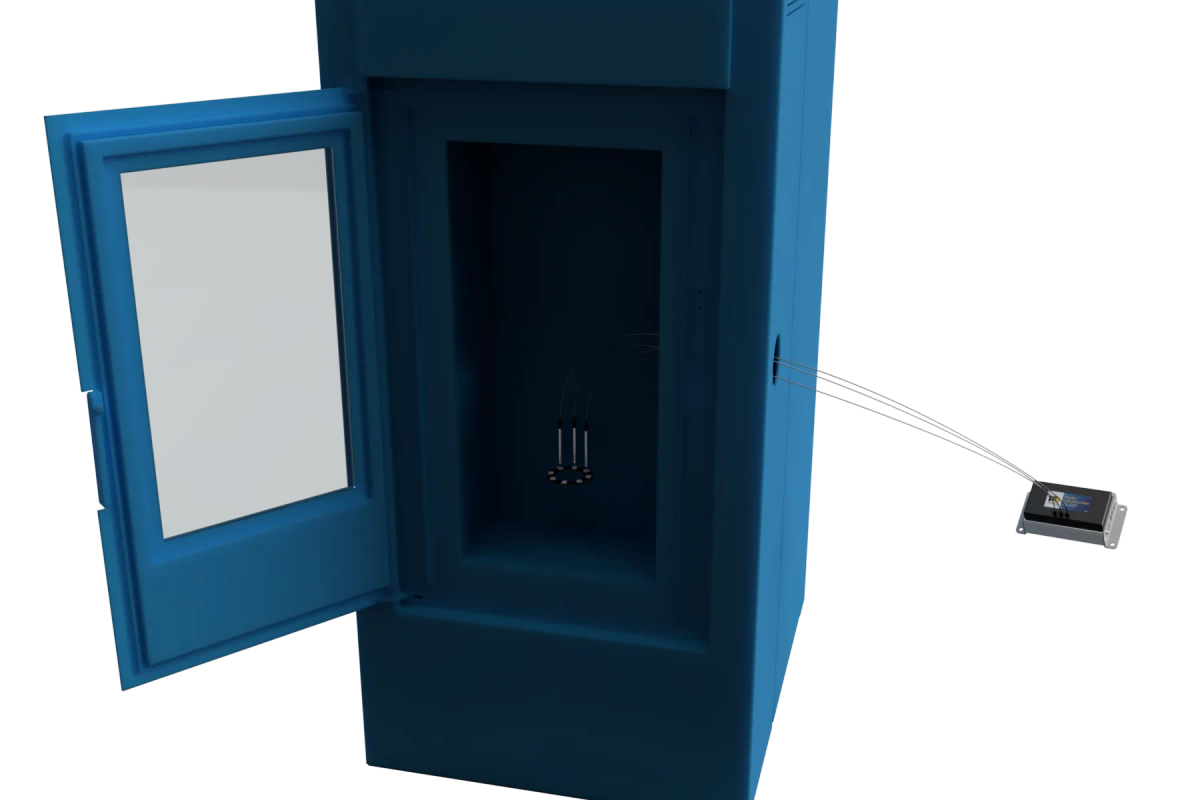

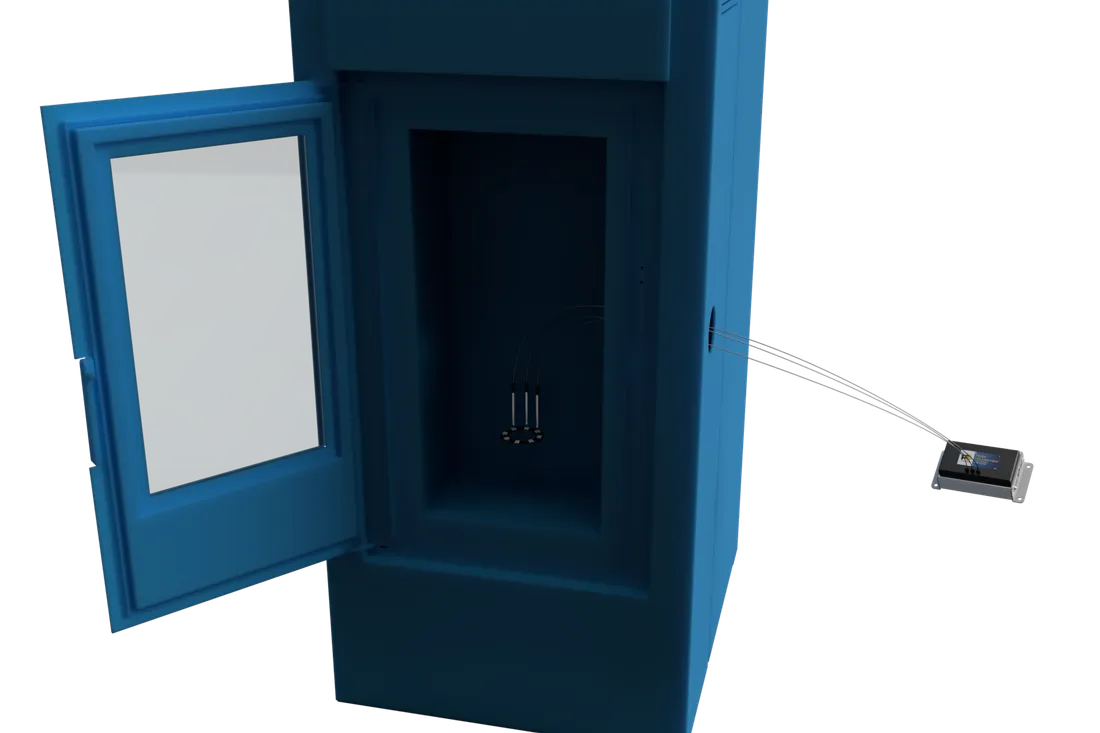

With the analyser module positioned outside the environmental chamber, it delivers fully automated long-term testing while continuously recording LED performance throughout the entire test cycle.
Built for the long run. Trusted globally.
Continuous monitoring through thermal cycling
Monitor LED performance continuously through temperature cycles from −65°C to +125°C.
Comprehensive output parameters
Outputs include Hue, Saturation, Intensity, Dominant Wavelength, CCT, CIE xy and CIE u'v'.
Complete software package
The full Feasa Software Suite is included as standard, with DLL and programming examples for LabVIEW, C, C++, C# and Python.
Built for production integration
USB and RS232 interfaces are standard, with up to 30 analysers daisy chained from a single port.
Proven in production
- Millions of LEDs tested every day using Feasa products
- Worldwide usage on production lines by leading manufacturers
Direct engineering support
From fixture integration and setup to troubleshooting, our technical team supports you throughout deployment.
Applications
Where our LED Life Tester is commonly used.
Technical Specifications
| Parameter | Value | Notes |
|---|---|---|
| Channels | 3, 5, 6, 10, 20 | |
| Wavelength range | 450–650 nm | |
| Dominant wavelength accuracy | ±2 nm @ 590 nm | |
| CCT accuracy | ±200K @ 2856K | |
| CIE xy accuracy | ±0.01 @ x=0.33, y=0.33 | |
| Resolution (chromaticity) | 0.0001 | |
| Repeatability — wavelength | ±1 nm | |
| Repeatability — CCT | ±50K @ 2856K | |
| Repeatability — CIE xy | ±0.0015 | |
| Intensity repeatability | <1% | |
| Supply voltage | 5.0V | |
| Dimensions | 104.5 × 54 × 39 mm / 145 × 54 × 39 mm | |
| Operating temperature | −65 to +125°C (fiber/heads) · 0 to +50°C (analyser) | Glass fiber and HT optical heads required · Analyser unit sits outside oven |
| Interface | USB, RS232, Daisy Chain, Ext. Trigger | |
| Compliance | CE, RoHS | |
| Model / order codes | 3LT · 5LT · 6LT · 10LT · 20LT |
Feasa Test Software
Included with every Life Tester
- Continuous testing — LED testing at fixed time intervals — from 1 second to multiple hours
- Data logging — All data saved to disk for later retrieval, reporting and graphing
- Error alerts — Configurable email alerts on error detection
- Completion notification — Configurable email notification at end of test sequence
- Flexible connectivity — Compatible with USB and RS232 interfaces
- Multi-unit monitoring — Supports Daisy Chain for monitoring multiple analysers simultaneously
